Product Overview

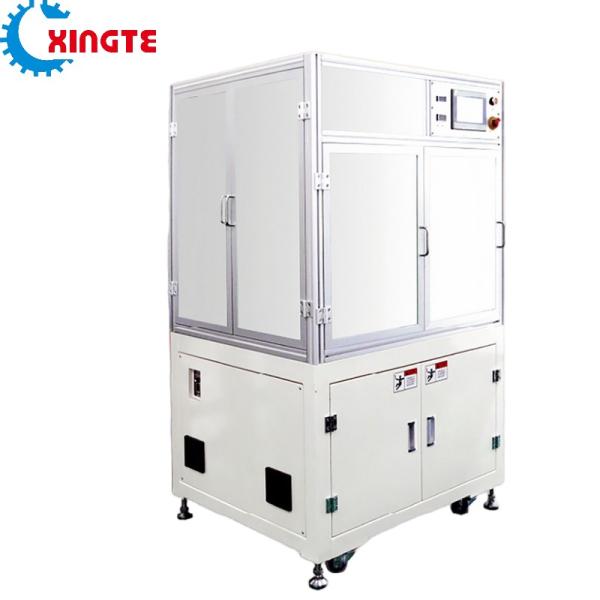

This equipment is a new machine specially designed by XINGTE for wireless charging receivers’ coil winding. It can be used to wind various wireless charging coils currently on the market. While meeting the needs of automated coil production, the efficiency is significantly improved compared to similar products. For example, the production capacity of multiple enameled wires can reach 60-120 PCSh per hour.
Product Features
This equipment has high precision features, the plane height between the molds reaches 0.01mm, and the product thickness tolerance reaches 0.01mm;
it adopts a vertical winding method, multiple groups of wires load at the same time, multiple groups of wires can be paralleled, and multiple groups of wires are automatically loading, automatic winding, automatic cutting, automatic blanking;
the equipment adopts an advanced multi-axis motion controller, the motion controller can perform high-precision linear positioning and arc interpolation positioning, and the program can be self-programmed according to different product requirements.
Application areas
Smartphone built-in wireless charging coil winding
Product Parameters
| Model | XT-601ST |
| Wire diameter | 0.03-0.3mm |
| Coil stack height | ≤ 5mm |
| Coil outer diameter | ≤ 50mm ( can customized) |
| Yield rate | 99.8% |
| Lead wire length | 20-50mm ( can customized) |
| Power supply | AC220V,50/60Hz |
| Capacity | 120 pcs/ H |
| Power | 4Kw |
| Air supply | Min. 0.6MPa |
| Machine dimensions | 1150(L)x1400(W)x1,820(H)mm |
| Machine weight | Approx.420kgs |
Basic information about XINGTE
Experience
XINGTE was established in 2007, with more than 17 years R & D experience in the coil winding area
Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more than 30,000 square meters, which can ensure our Strong productivity
Service
XINGTE has more than 230 technical service and after-sales staff, worldwide service points worry-free after-sales service
Patents & certificates
Patents & certificates:
XINGTE obtained 120+ Patents and related certificates
Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee our Production capacity and fast delivery
Technology
XINGTE has more than 130 experienced engineers, which can ensure our strong R & D ability, also can guarantee our customization capability
XINGTE PRODUCTION LINE
1, Motor stator, rotor, and other related coil winding machine
2, Transformer-related product coil winding machine
3, voice coil-related product winding machine
4, inductor coil winding machine and
5, customized fully automatic line for the motor, speaker, transformer production line
